| GENERAL DESCRIPTION |
Product Features
| TECHNICAL SPECIFICATIONS | ||
| Frequency range | 6 - 26 MHz | |
| Antenna type | HR 2/2/h, HR 4/2/h, HR 4/4/h, HR 8/4/h | |
| Polarization | Horizontal | |
| Gain | 13.5 - 25.5 dB (f = f0) | |
| VSWR | ≤ 1.54 | |
| Max. power | 500 kW ± 100% Modulation | |
| Feeder impedance | 300 Ω Balance | |
| Front to back ratio | ≥ 14 dB (f = f0) | |
| Horizontal half-power beamwidth | ±25° (f = f0), ±12° (f = f0), ±12° (f = f0), ±9° (f = f0) | |
| Step | 1° | |
| Seismic fortification intensity | 9° | |
| Max. wind velocity | 36 m/s | |
| Specifications may change without notice | ||

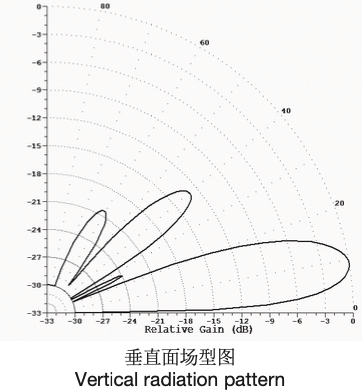

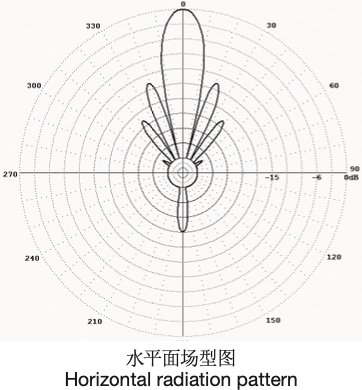

| RADIATION PATTERNS | |
|
|
