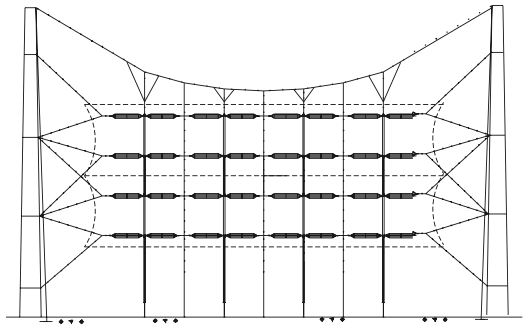

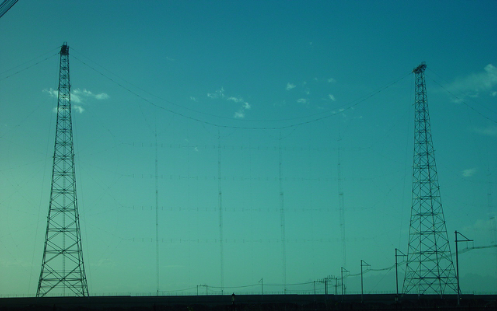

| GENERAL DESCRIPTION |
Product Features
| TECHNICAL SPECIFICATIONS | ||
| Frequency range | 6 - 11 MHz, 7 - 13 MHz, 9 - 17 MHz, 11 - 21 MHz | |
| Polarization | Horizontal | |
| Gain | 24 - 25.5 dB (f = f0) | |
| VSWR | ≤ 1.54 | |
| Max. power | 500 kW ± 100% Modulation | |
| Feeder impedance | 300 Ω Balance | |
| Angle of deviation | ±15°, ±30° | |
| Front to back ratio | ≥ 14 dB (f = f0) | |
| Horizontal half-power beamwidth | ±9° (f = f0) | |
| Factor of feeder unbalance | ≤ 15% | |
| Seismic fortification intensity | 9° | |
| Max. wind velocity | 36 m/s | |
| Specifications may change without notice | ||

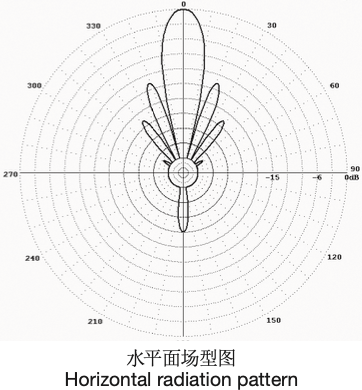

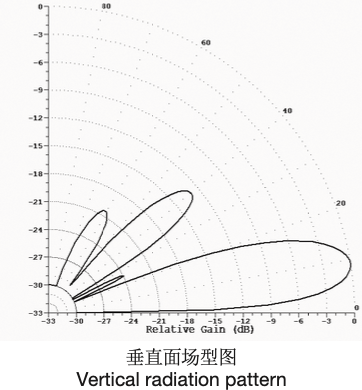

| RADIATION PATTERNS | |
|
|
