| GENERAL DESCRIPTION |
Product Features
| TECHNICAL SPECIFICATIONS | ||
| Frequency range | 4 - 5 MHz, 6 - 7 MHz, 9 - 11 MHz | |
| Polarization | Horizontal | |
| Gain | 5.3 dB | |
| VSWR | ≤ 1.54 | |
| Max. power | 150 kW ± 100% Modulation | |
| Feeder impedance | 300 Ω Balance | |
| Seismic fortification intensity | 9° | |
| Max. wind velocity | 36 m/s | |
| Specifications may change without notice | ||

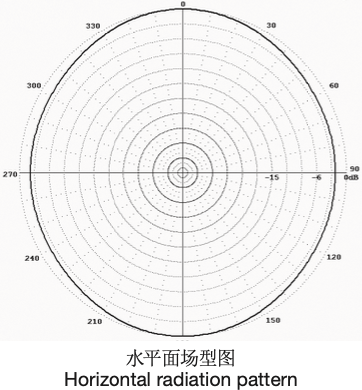

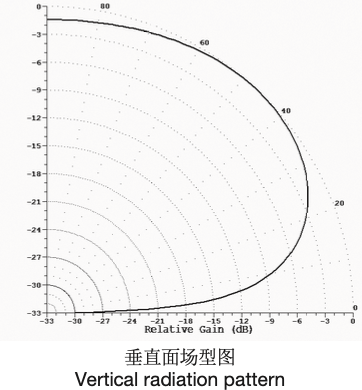

| RADIATION PATTERNS | |
|
|
