| GENERAL DESCRIPTION |
Product Features
| TECHNICAL SPECIFICATIONS | ||
| MODEL | RDT-027-01 | RDT-027-02 |
| Frequency range | 5.9 - 21.85 MHz | 3 - 30 MHz |
| Max. input power | 5 kW | |
| Polarization | Vertical | |
| Directivity | Omnidirectional | |
| Gain | ≥ 3 dB | |
| Impedance | 50 Ω | |
| VSWR | ≤ 2.0 | |
| Input connectors | 7-16 DIN, 7/8" EIA | |

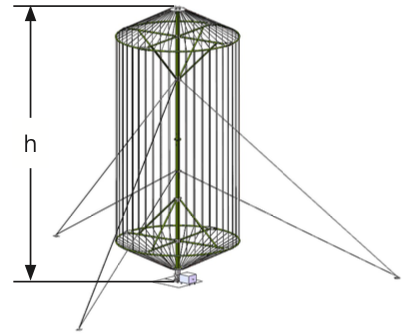

| Antenna height | 10 m | 18 m |
| Operating | -40 - +55°C | |
| Max. wind velocity | 36 m/s | |
| Lightning protection | Yes | |
| Dimensions | 4.5 x 4.5 x 10 m | 4.5 x 4.5 x 18 m |
| Weight | ∼600 kg | ∼900 kg |
| Specifications may change without notice | ||

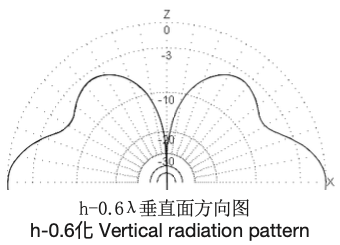

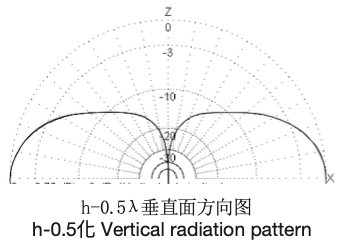

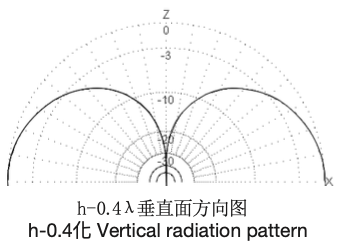

| RADIATION PATTERNS | ||
|
|
|
