HANJIN JELPW-430S-10S

GENERAL DESCRIPTION

LOG PERIODIC DIPOLE ARRAY ANTENNA

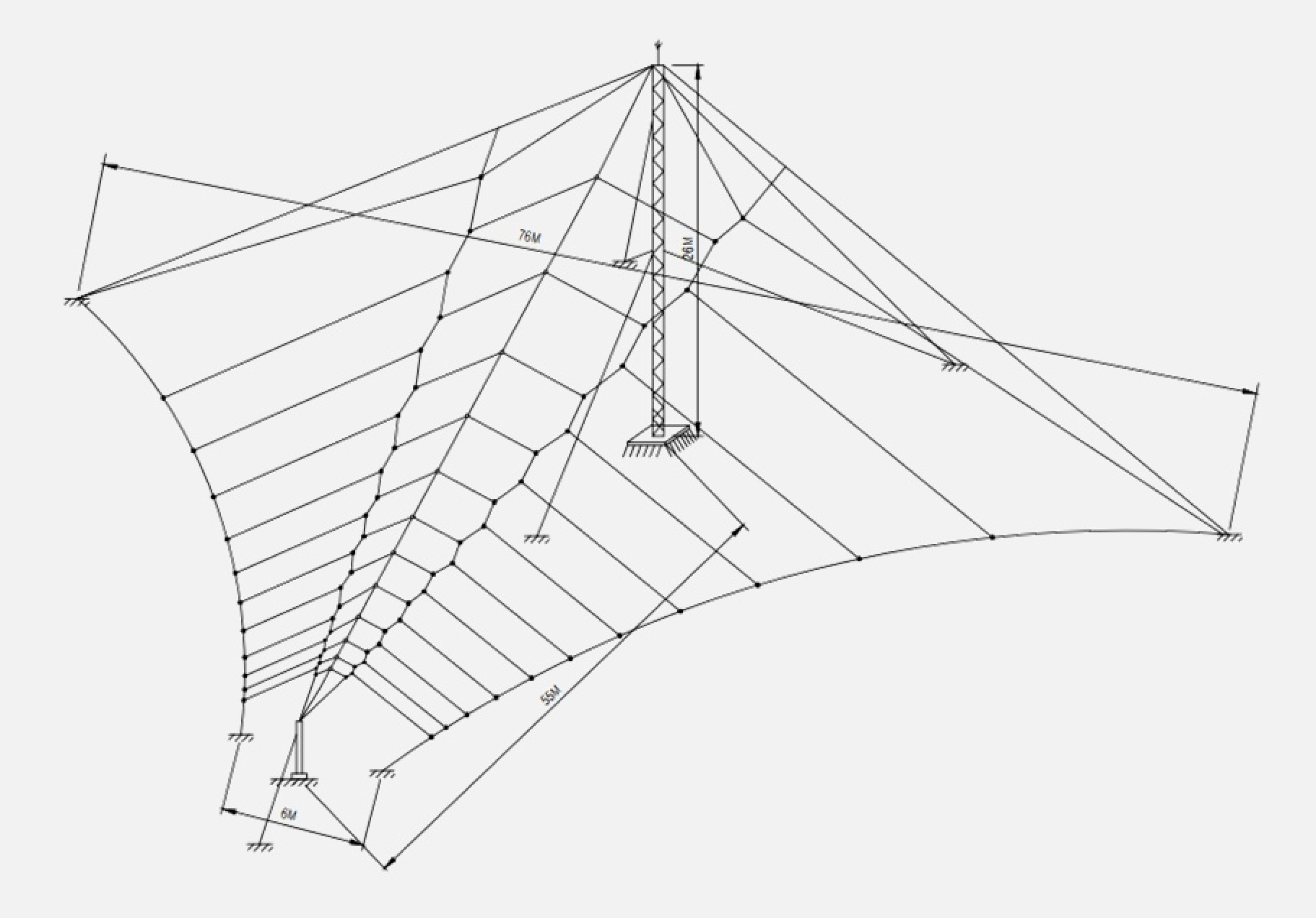

picture Hanjin JELPW-430S-10S

Tailored for short-range point-to-point and close-in sectoral coverage applicationsm, the Model JELPW-430S-10S radiates a broad, upwardly directed beam, slightly biased in one direction.
This antenna coverage is 4.5 MHz to 30 MHz and the antenna's horizontal polarization addresses the inability of vertically polarized radiators to support skywave propagation.
This antenna is a true broadband solution, covering the 4.5 to 30 MHz range with essentially constant patterns, a less than 2.1:1 VSWR and essentially 100% efficiency.

TECHNICAL SPECIFICATIONS
Frequency Range	4.5 ∼ 30 MHz
Impedance	50 ohm
Gain	10 dBi (Nominal)
V.S.W.R.	2.1 : 1 ≥
Dimension	76 m (W) x 55 m (L) x 26 m (H)
Power (Input Connector 1⅝")	10 kW A.V.G
Polarization	Horizontal
Azimuth Plane Beam	H-POWER POINT 80°>
Wind Survival	225 Km/h
Tower Height	26 m
Specifications may change without notice

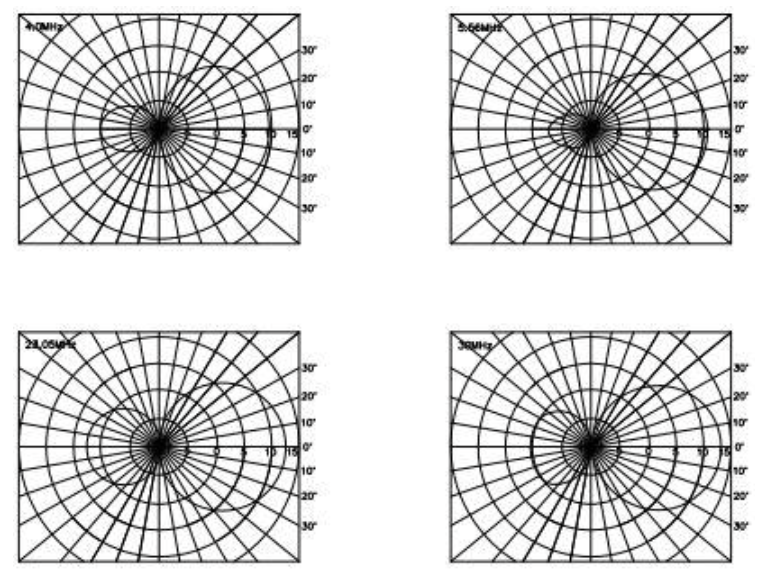

AZIMUTH RADIATION PATTERNS

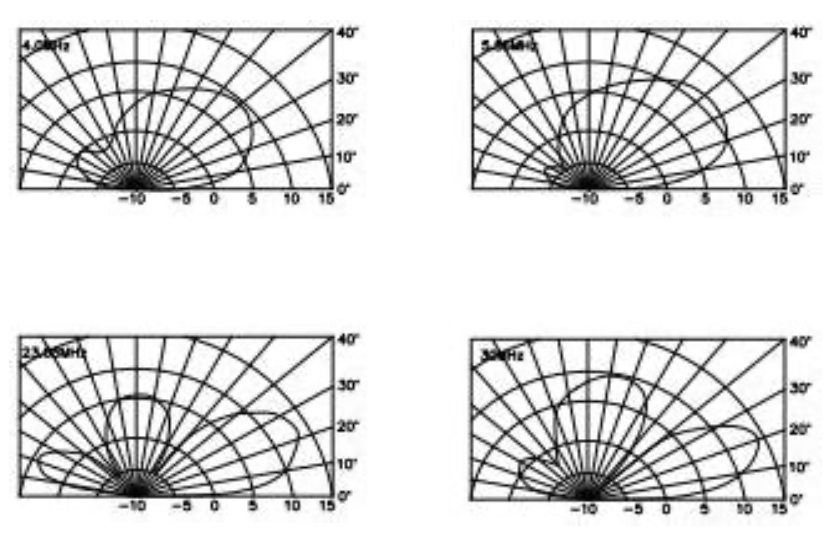

ELEVATION RADIATION PATTERNS
