HANJIN JECM 230-S / 330-S / 430-S

GENERAL DESCRIPTION

CONICAL MONOPOLE ANTENNA

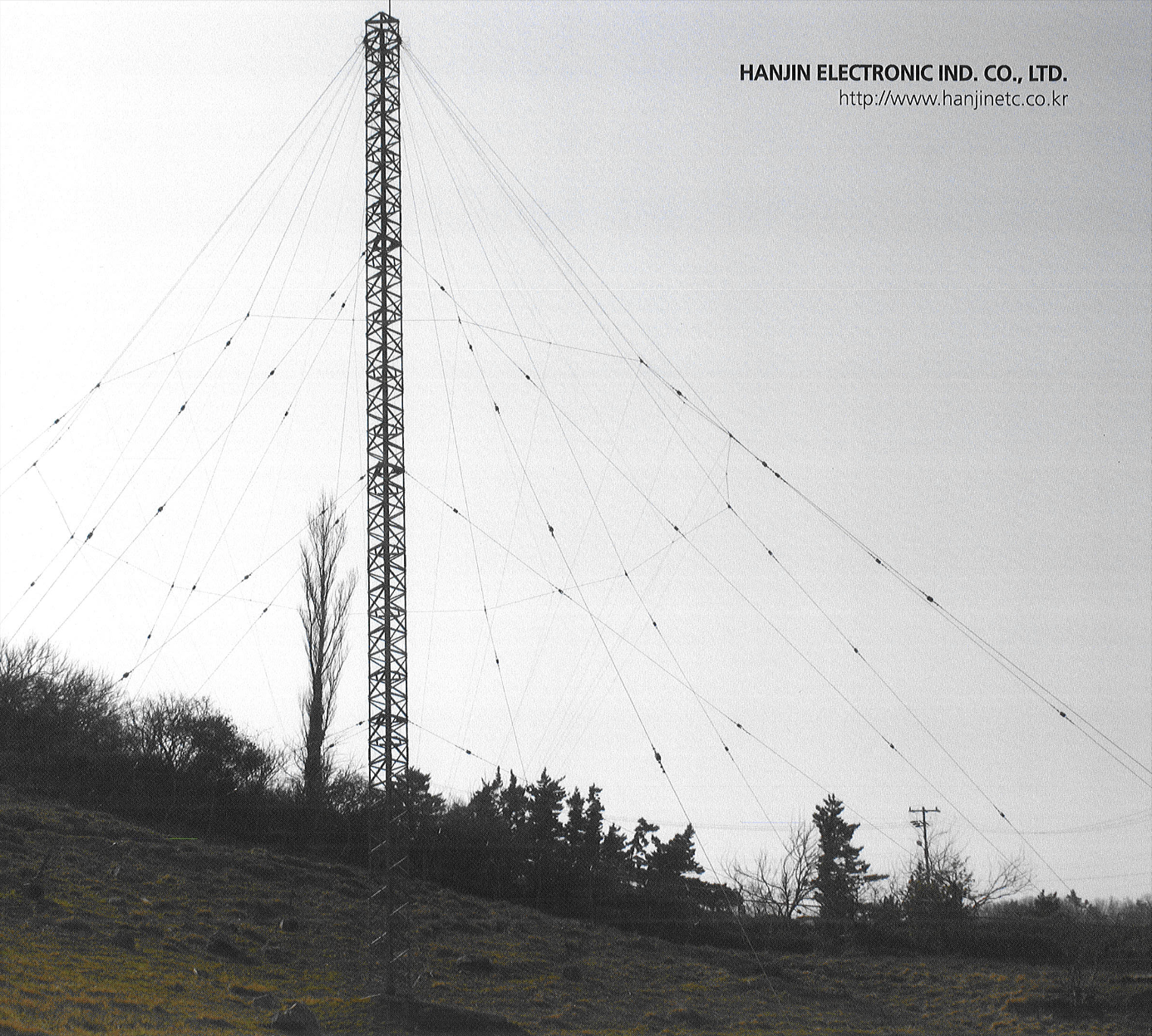

picture Hanjin JECM 230-S / 330-S / 430-S

picture Hanjin JECM 230-S / 330-S / 430-S

The MONOPOLE antenna has the shape of two inverted cones of metallic conductors placed on a conducting ground plane.
This radiating volume is supported by a central tower guy with insulated cables.
This antenna assembly is isolated from the ground plane and is fed through standard coaxial connectors.
The erection of a MONOPOLE antenna does not require any heavy equipment.
It is done with a few accessories provided on request.

TECHNICAL SPECIFICATIONS
MODEL		JECM 230-S	JECM 330-S	JECM 430-S
Frequency Range		2∼30 MHz	3∼30 MHz	4∼30 MHz
Impedance		50 ohm	50 ohm	50 ohm
Nominal Gain 9dBi)		5 dBi	5 dBi	5 dBi
V.S.W.R (Average)		1:2.5≥	1:2.5≥	1:2.5≥
Polarization		Vertical	Vertical	Vertical
Wind Load		170 Km/H	170 Km/H	170 Km/H
Install Size	Height	33 m	25 m	19 m
	Wide (Guy)	R = 37.5 m (∅75 m)	R = 26 m (∅52 m)	R = 20 m (∅40 m)
	Radial Ground	R = 37.5 m (∅75 m)	R = 25 m (∅50 m)	R = 19 m (∅38 m)
Power at Input Connector	∅⅞"	AVG 8 KW≥
	∅1⅝"	AVG 15 KW≥
	∅3"	AVG 30 KW≥
Specifications may change without notice

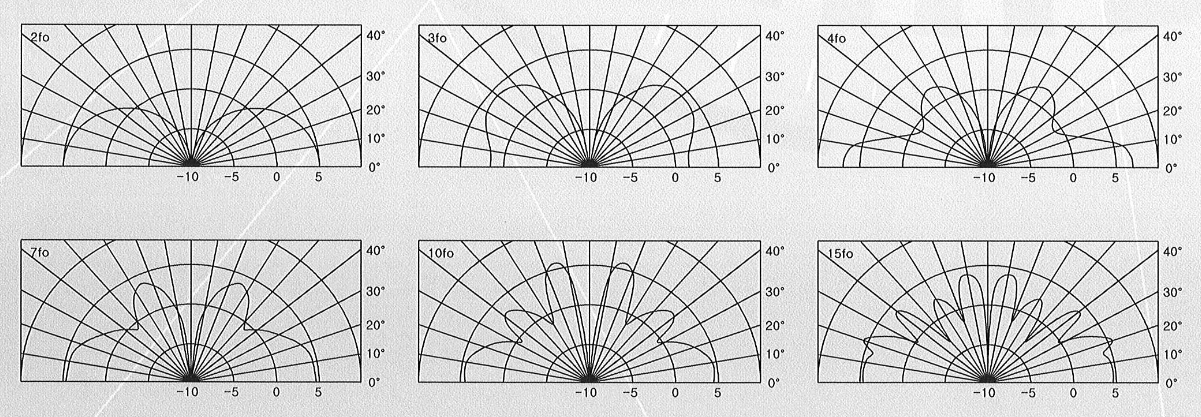

ELEVATION RADIATION PATTERNS

Hanjin JELPW-430S-10S elevation radiation patterns
