HANJIN BBD 230S

GENERAL DESCRIPTION

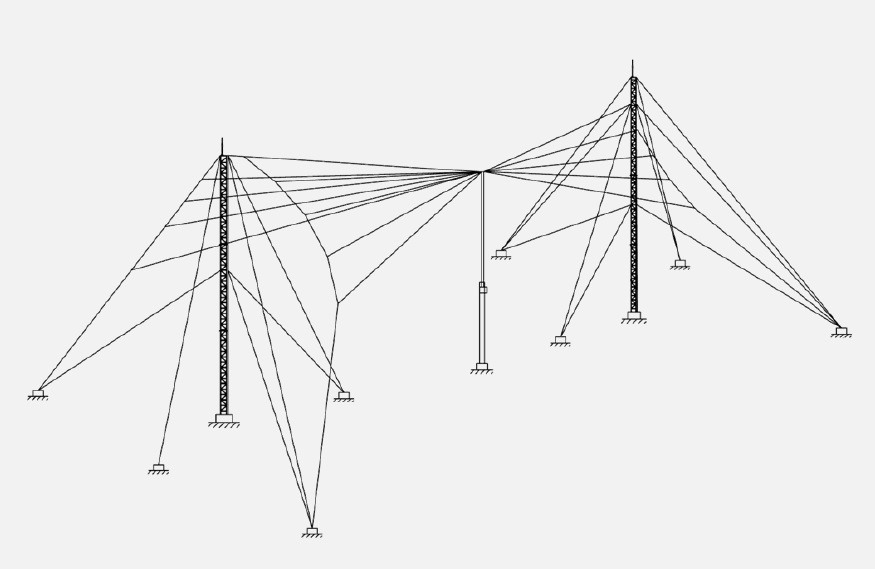

BROAD BAND DIPOLE ANTENNA
picture Hanjin JELPW-430S-10S

Fit to medium-distance wireless communication using the ionization layer wave at HF band.
Aluminum coated stranded wire, high radio wave effect.
Medium-long distance vertically polarized wave wire communication in Ionization layer.

TECHNICAL SPECIFICATIONS
Frequency Range		3-25 MHz
Impedance		50 ohm
Nominal Gain (dBi)		5 dBi (Nominal)
VSWR		Less than 2.5:1
Directivity		Omni
Polarization		Horizontal
Wind Load		45 m/sec
Size	Height	16 M
	Length	50 M
	Wide	35 m
Input Terminal		∅⅞" EIA Flange Type
Electricity		220 VAC ±10%, 50 Hz, 1∅
Operational Temperature Range		-40°C ∼ +70°C
Hunmidity		Less than 90%
Specifications may change without notice
