BAE SYSTEMS ANV SERIES

GENERAL DESCRIPTION


V-TYPE ANTENNAS - ANV SERIES

photo BAE Systems ANV Series This broadband series of antenna is designed for medium to long range transmission or receiving applications.

Polarization is horizontal and characterised by an increase in gain and directivity when operated within the higher frequency band.

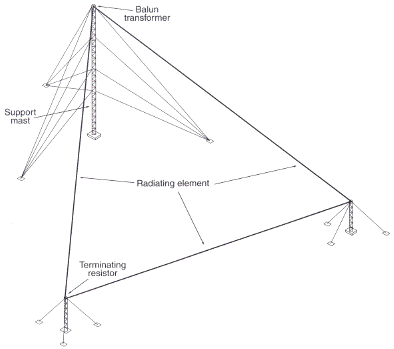

The antenna comprises two sloping wires resistively terminated and forming an open vee configuration.

Radiation elevation characteristics vary with the frequency, the higher the frequency the lower the angle of radiation.

This characteristic enables short to medium range coverage to be established using frequencies less than 6 MHz and long distance links utilising the higer frequency band.

TECHNICAL SPECIFICATIONS
MODEL
ANV45F ANV120F
Electrical
Frequency Range (MHz) 2 - 30
Polarization
Horizontal
Power Rating-Average
Optional to 1 kW
VSWR
Typically less than 2:1, Max. 2.5:1
Connector
"N" Socket
Mechanical
Mast Height rear (m) 16 20
front (m) 4 4
Mast Guy Radius rear (m) 10 10
front (m) 3 3
Ground Dimensions vee length (m) 35.5 106
vee width (m) 50 88
Wind Rating
160 km/hr
Specifications may change without notice

AZIMUTH RADIATION PATTERNS
ANV45F ANV120F
BAE Systems ANV45F azimuth radiation patterns BAE Systems ANV120F azimuth radiation patterns

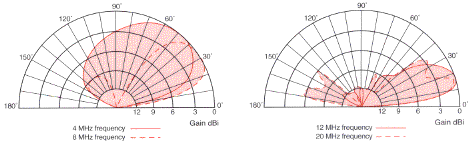

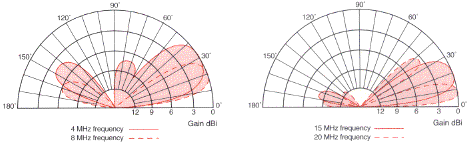

ELEVATION RADIATION PATTERNS
ANV45F ANV120F
BAE Systems ANV45F elevation radiation patterns BAE Systems ANV120F elevation radiation patterns


GAIN
ANV45F ANV120F
BAE Systems ANV45F gain BAE Systems ANV120F gain

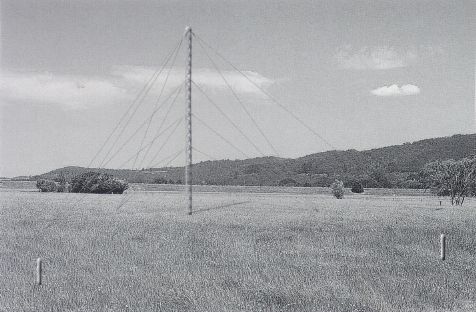

ANTENNA PICTURE
picture BAE Systems ANV Series


ORDERING INFORMATION
Example Model
Input Power Always 0 Always 0
ANV45F*100 ANV45F * 1 0 0




1 150 W Average




2 1 kW Average
