ANTENNA PRODUCTS CORPORATION LPV-1200/1600

GENERAL DESCRIPTION


LONG RANGE, VERTICAL POLARIZATION, DIPOLE LOG PERIODIC, STEERABLE BEAM - LPV-1200/1600

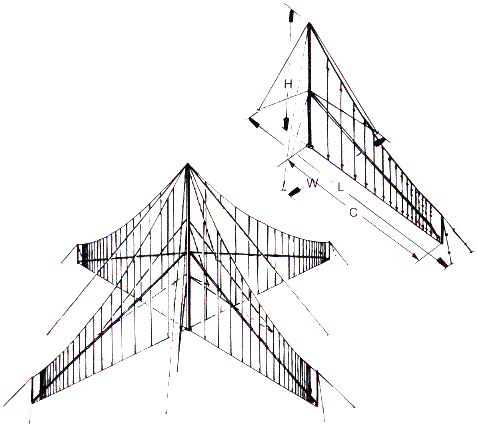

picture Antenna Products Corporation LPV-1200/1600 Applications

The LPV-1200 series antennas are fixed station, vertically polarized, log periodic dipole antennas suitable for short range groundwave circuits and mediums to long range skywave circuits in the 2-30 MHz frequency band.

Features

Multi-stranded wire array, heavy duty aluminium tower, corrosion resistant materials and low maintenance components are major design achievements incorporated into this antenna, providing lower maintenance costs.

Characteristics

The LPV-1600 series utilizes four independent LPV-1200 series curtains arrayed in a rosette configuration about a single support tower and provides independent sector coverage.

Equipment Supplied

Prefabricated alumoweld curtain, 6061-T6 bolted aluminium tower, guy wires, front pole guys, anchors, and spare hardware.

Optional Equipment

Galvanized welded steel tower, balun transformer, wood pole, obstruction lights, ladder, climbing devices, erection kit, repair kit, and repair tool kit. Coaxial cable, connector adapters and mating adapters.

TECHNICAL SPECIFICATIONS
MODEL
1206 1208 1211 1215
Frequency Range
3 - 30 MHz 4 - 30 MHz 5.4 - 30 MHz 7.2 - 30 MHz
Maximum Height (H) 200 ft 160 ft 111 ft 84 ft
Length (L) 390 ft 325 ft 218 ft 170 ft
Width (W) 312 ft 208 ft 160 ft 118 ft
Curtain Length (C) 183 ft 140 ft 99.5 ft 75.3 ft
Shipping Weight (lbs) 3,100 2,500 1,800 1,300
Shipping Volume (cu ft) 100 90 80 70
Gain (Perfect Ground)
12 dBi
Gain (Imperfect Ground)
5 dBi over 1/2 wavelength monopole
Back and Side Lobe
14 dB minimum
Input Impedance
200 ohm balanced
VSWR
2:1 maximum
Power Capability /1
receiving to 1 kW avg/2 kW PEP
/2
10 kW avg/20 kW PEP
/3
25 kW avg/50 kW PEP
Wind Loading
120 mph
Specifications may change without notice

AZIMUTH RADIATION PATTERNS
Antenna Products Corporation LPV-1200/1600 azimuth radiation patterns

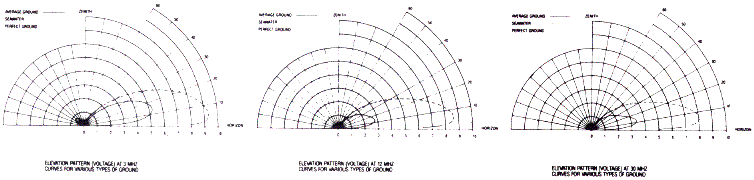

ELEVATION RADIATION PATTERNS
Antenna Products Corporation LPV-1200/1600 elevation radiation patterns
