ANTENNA PRODUCTS CORPORATION LPH-0300

GENERAL DESCRIPTION

SHORT RANGE, HORIZONTAL POLARIZATION, LOG PERIODIC ANTENNAS - LPH-0300

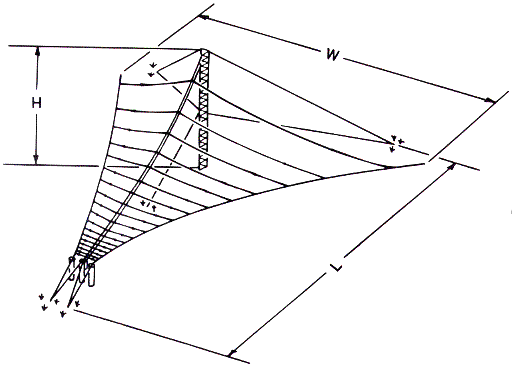

picture Antenna Products Corporation LPH-0300

Applications

The LPH-0300 is a series of horizontally polarized fixed station, log periodic antennas normally used for short range communications in the 2-30 MHz frequency band.

Features

All Rf connections are galvanic compatible and well-rounded to minimize the possibility of corona at high power levels.

Characteristics

The LPH-0300 series antennas are broadband and will operate within the defined frequency range without any adjustments or tuning.

Equipment Supplied

Prefabricated curtain, a bolted 6061-T6 aluminium tower, guy wires, anchors, balun, front poles, spare hardware, ground hardware.

Optional Equipment

Galvanized tower, balun transformer, obstruction lights, ladders, climbing devices, erection kit, and repair tool kit. Coaxial cable, connector adapters and mating adapters.

TECHNICAL SPECIFICATIONS
MODEL			0304	0306	0308
Frequency Range			2 - 30 MHz	3 - 30 MHz	4 - 30 MHz
Maximum Height		(H)	136 ft	84 ft	68 ft
Length		(L)	281 ft	187 ft	141 ft
Width		(W)	417 ft	278 ft	209 ft
Shipping Weight		(lbs)	2,000	1,600	1000
Shipping Volume		(cu ft)	80	55	40
Gain (Perfect Ground)			8.5 to 11 dBi
Back and Side Lobe			14 dB minimum
Input Impedance			50 ohm balanced
VSWR			2:1 maximum
Power Capability	/1		receiving to 1 kW avg/2 kW PEP
	/2		10 kW avg/20 kW PEP
Azimuth Beam Width			80° (typical)
Wind Loading			120 mph
Specifications may change without notice

AZIMUTH RADIATION PATTERNS

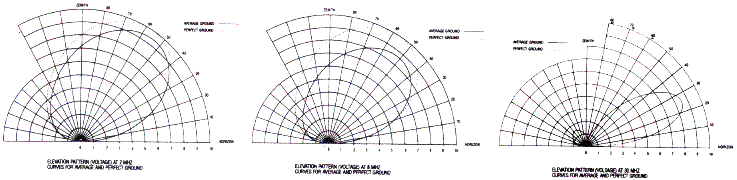

ELEVATION RADIATION PATTERNS
