INVERTED L ANTENNA FOR SHORTWAVE RADIO BROADCASTING


GENERAL DESCRIPTION


photo inverted L antenna The inverted L antenna is simple and easy to construct.

The azimuthal radiation pattern is slightly asymmetrical with about 1 to 2 dB increase in the direction opposite to the horizontal wire.

The inverted L antenna requires a good buried ground system or elevated radials.

The antenna is a form of top-loaded vertical, where the top loading is asymmetrical. This results in both vertical and horizontal polarization.

TYPICAL RADIATION PATTERNS
Azimuth pattern Elevation pattern
typical azimuth pattern inverted L antenna typical elevation pattern inverted L antenna


TYPICAL COVERAGE MAP

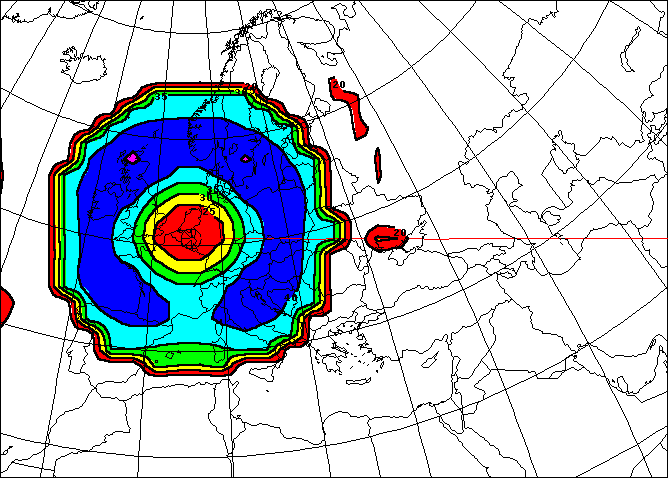

typical coverage map inverted L antenna


TECHNICAL SPECIFICATIONS
ELECTRICAL
Azimuth pattern omnidirectional
Frequency ranges 2-30 MHz
Gain ... dBi
Input impedance 50 ohm unbalanced
Polarization horizontal/vertical
Power ratings 1 kW average
VSWR 2.5 : 1 or less
DIMENSIONS
Length ...
Width ...
Height ...
Specifications may change without notice

THIS TYPE OF ANTENNA IS AVAILABLE FROM
Manufacturer Type number Power Level
LBA Technology HFRC
M


ABBREVIATIONS

Abbreviation Explanation
Power Level L low 1-5 kW
M medium 10-50 kW
H high 100-500 kW
