ANTENNA PRODUCTS CORPORATION LPH-0400

GENERAL DESCRIPTION


SHORT TO MEDIUM RANGE, HORIZONTAL POLARIZATION, LOG PERIODIC ANTENNAS - LPH-0400

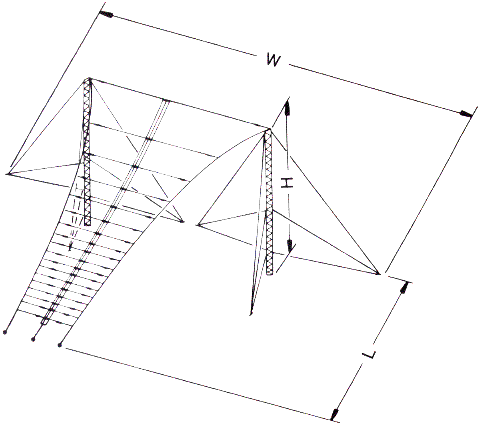

picture Antenna Products Corporation LPH-0400 Applications

The LPH-0400 series of horizontally polarized, fixed station, log periodic antennas are normally used for short to medium range communications in the 2-30 MHz frequency band. All RF connectors are galvanic compatible and well-rounded to minimize the possibility of corona at high power levels. Multiple antennas can share common towers in custom configurations.

Characteristics

The LPH-0400 series are broadband log periodic arrays, and will operate within the frequency range for each applicable model without any adjustment or tuning.

Equipment Supplied

Prefabricated alumoweld curtain, two bolted 6061-T6 aluminium towers, guy wires, anchors and balun.

Optional Equipment

Galvanized tower, balun transformer, obstruction lights, ladders, climbing devices, erection kit, and repair tool kit. Coaxial cable, connector adapters and mating adapters.

TECHNICAL SPECIFICATIONS
MODEL
0404 0406 0408 0411
Frequency Range
2 - 30 MHz 3 - 30 MHz 4 - 30 MHz 5.4 - 30 MHz
Maximum Height (H) 155 ft 100 ft 75 ft 60 ft
Length (L) 284 ft 203 ft 138 ft 112 ft
Width (W) 516 ft 354 ft 238 ft 199 ft
Shipping Weight (lbs) 3,620 2,900 2,100 1,700
Shipping Volume (cu ft) 84 60 55 50
Gain
10 dBi
Back and Side Lobe
14 dB minimum
Input Impedance
50 ohm balanced
VSWR
2:1 maximum
Power Capability /1
receiving to 1 kW avg/2 kW PEP
/2
10 kW avg/20 kW PEP
/3
25 kW avg/50 kW PEP
Wind Loading
120 mph
Specifications may change without notice

AZIMUTH RADIATION PATTERNS
Antenna Products Corporation LPH-0400 azimuth radiation patterns

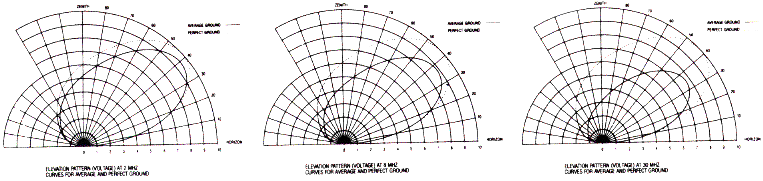

ELEVATION RADIATION PATTERNS
Antenna Products Corporation LPH-0400 elevation radiation patterns
